Standard/Large/Jumbo Machines

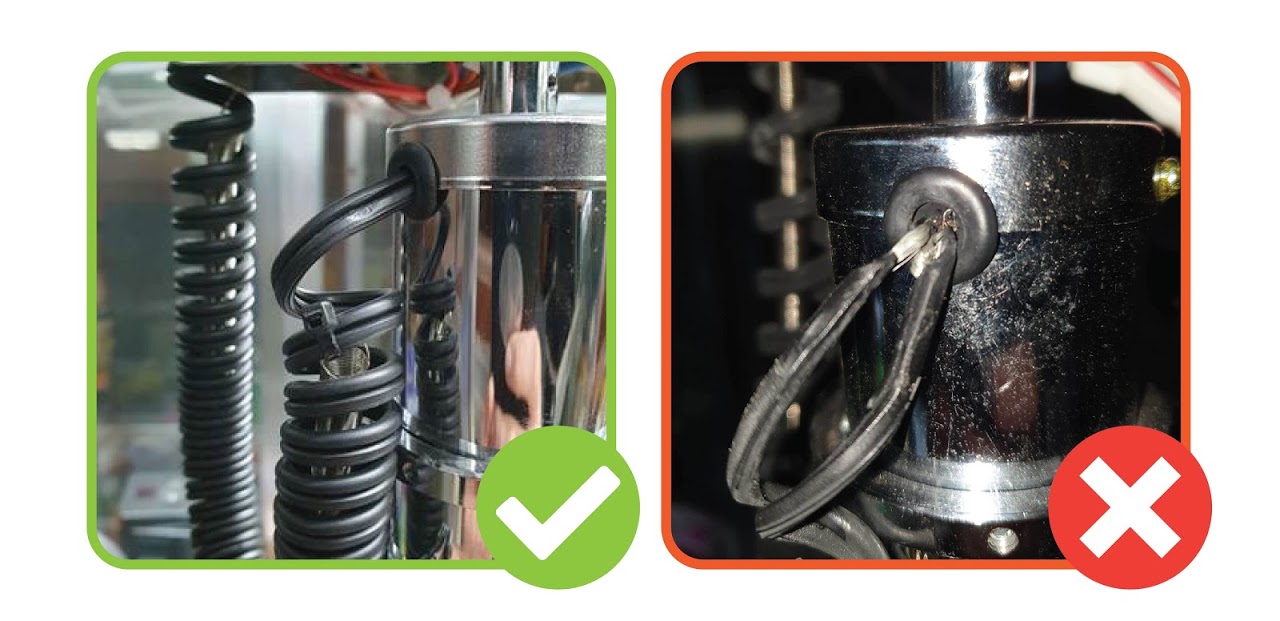

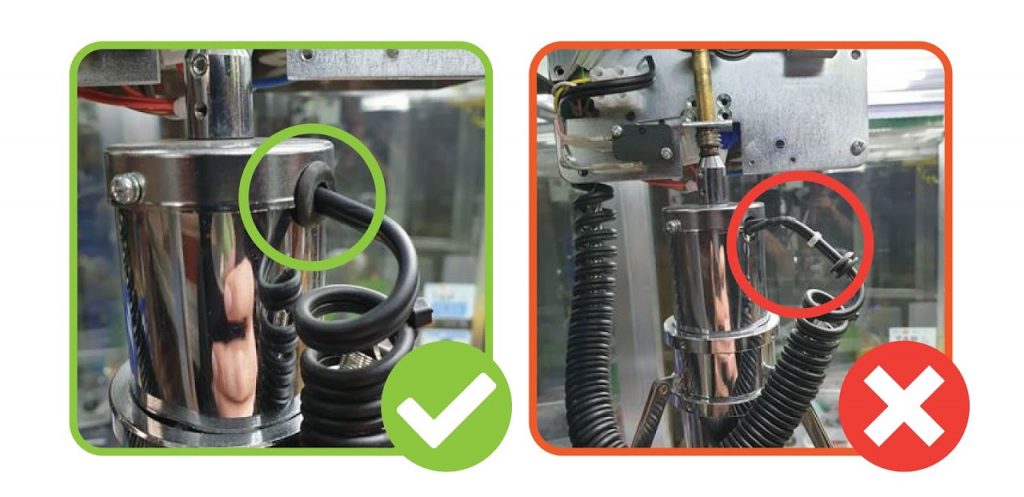

1. INSPECT WIRING WHERE IT ENTERS THE COIL AND CHECK FOR:
Rubber grommet in place
No breaks/fraying in the wire

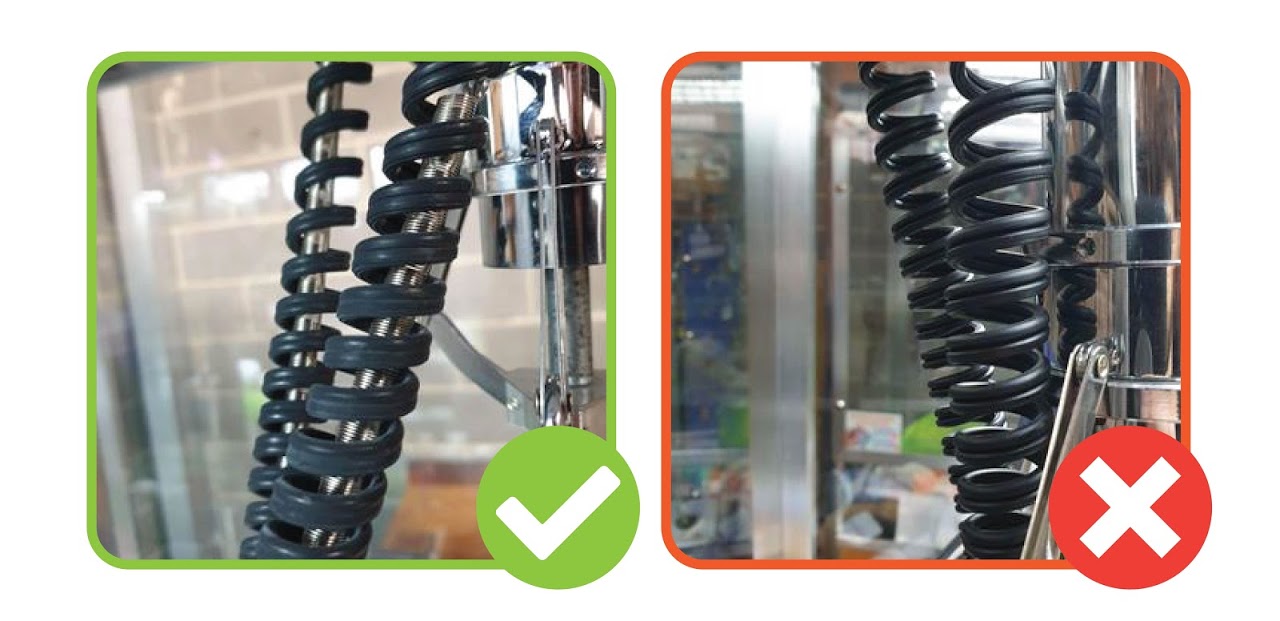

2. CHECK THE WIRING HAS A SPRING IN THE MIDDLE AND IS CABLE TIED ON:
Spring running on the inside of the coil wiring

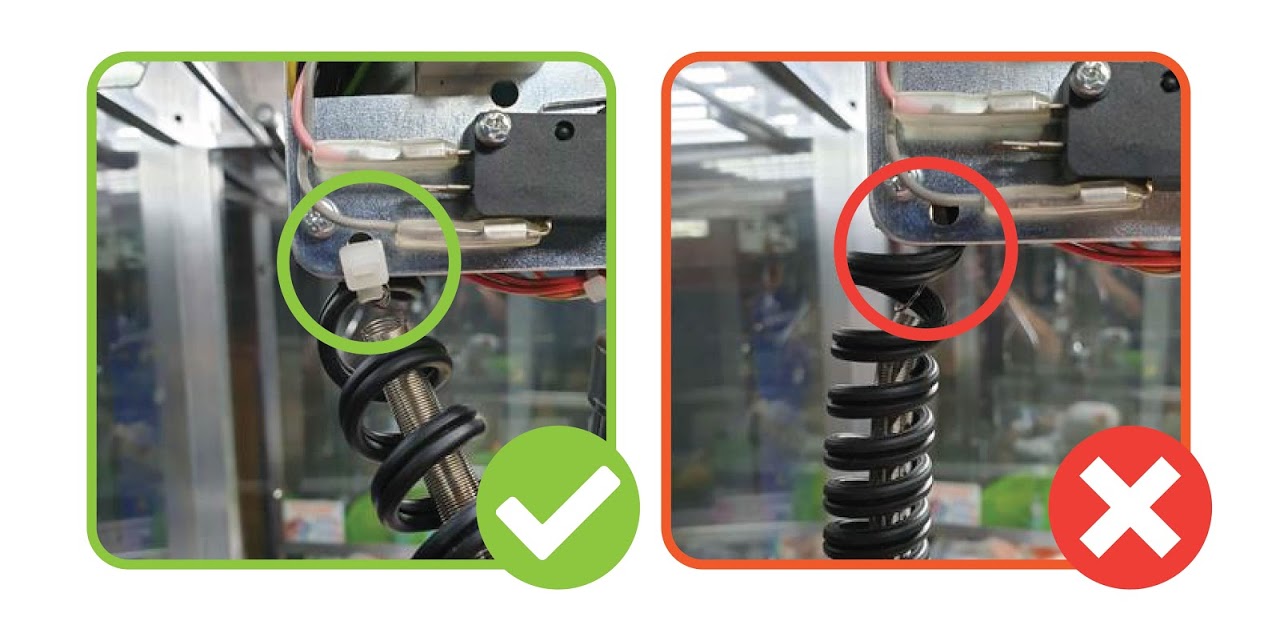

Cable tied at both ends – to the coil wire and to the hole in the gantry head.
Maxi Claw

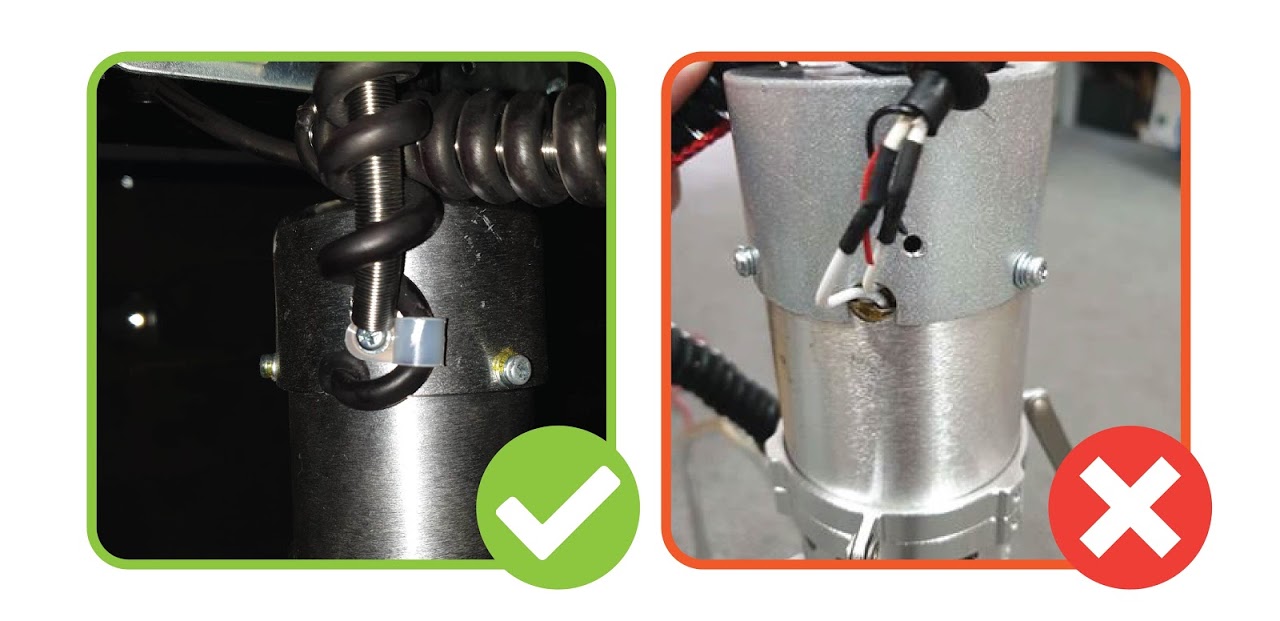

1. INSPECT WIRING WHERE IT ENTERS THE COIL AND CHECK FOR:
Rubber grommet in place and no breaks/fraying in the wire

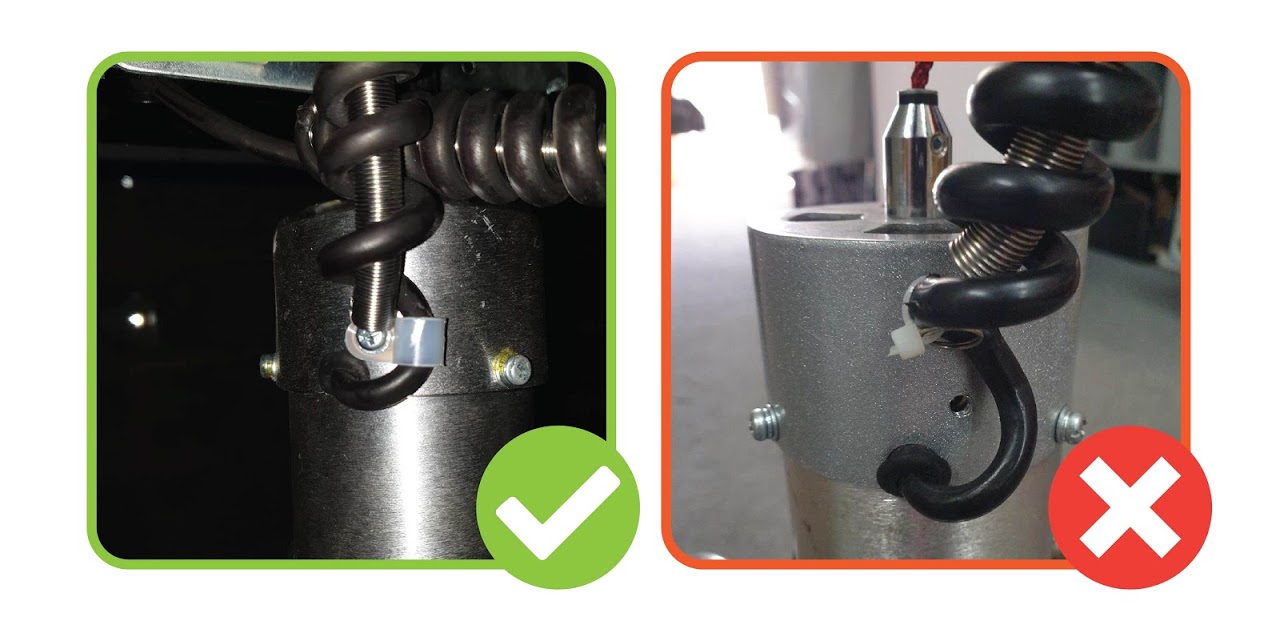

2. P CLIP & SPRING
P Clip is screwed onto the claw with the wire inside the P clip and spring attached to the P Clip Screw
3. CHECK WIRE AND SPRING IS CABLE TIED TO THE GANTRY HEAD.
