FUSE Identification and Replacement

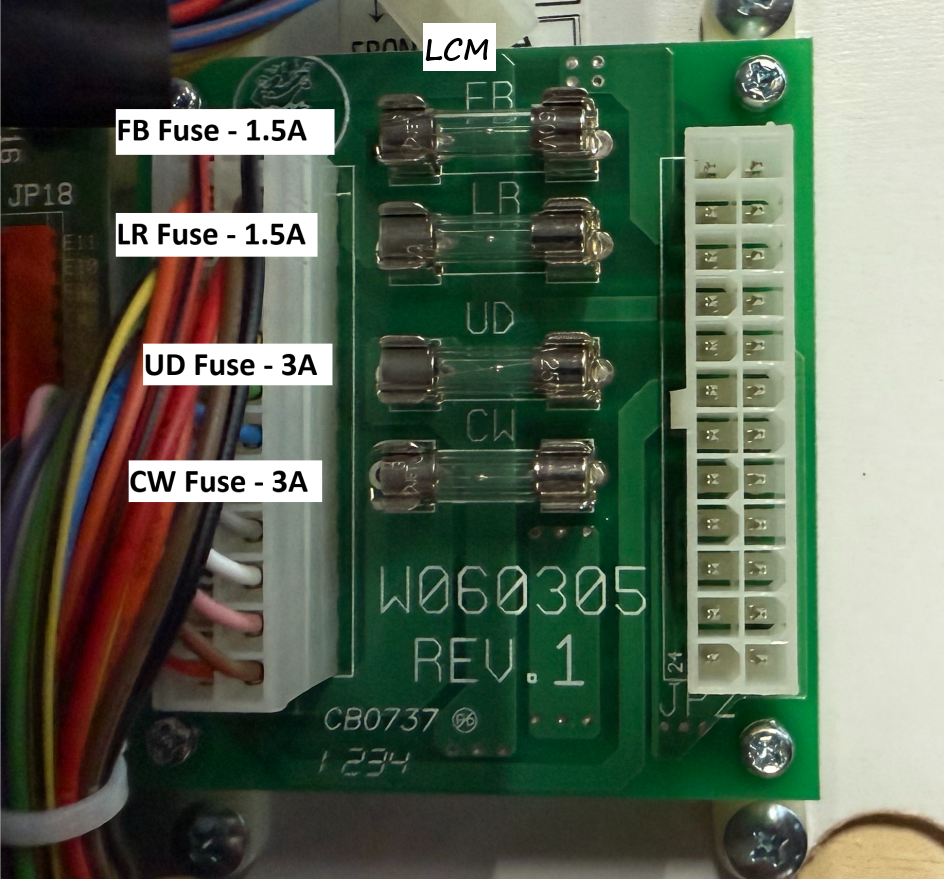

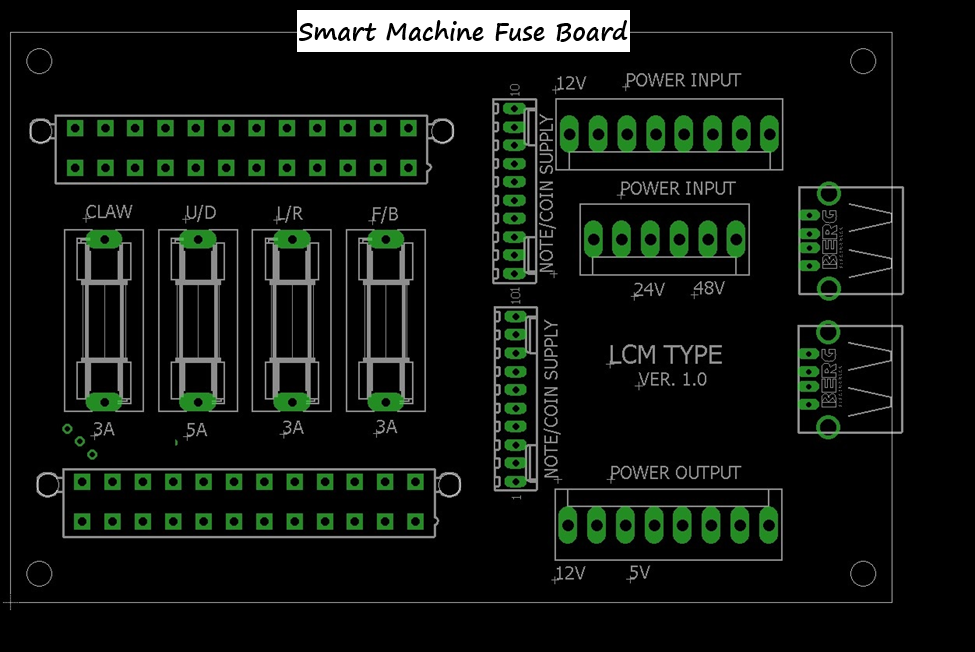

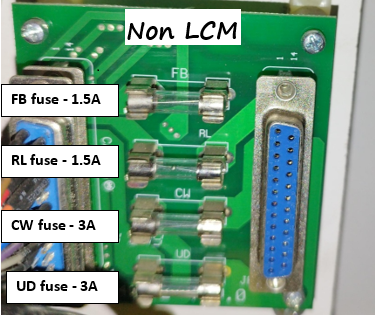

Fuse Location and Values

In replacing the fuses, one must just gently pull out the blown fuse and replace it with the same value.
Each fuse corresponds to different errors and areas:

FB (Front Back) Fuse – Burnt/broken fuse can cause (Error 07 – Front-stop switch not reached.)

LR (Left Right) Fuse – Burnt/broken fuse can cause (Error 05 – Left-right motor blocked for over 3 seconds.)

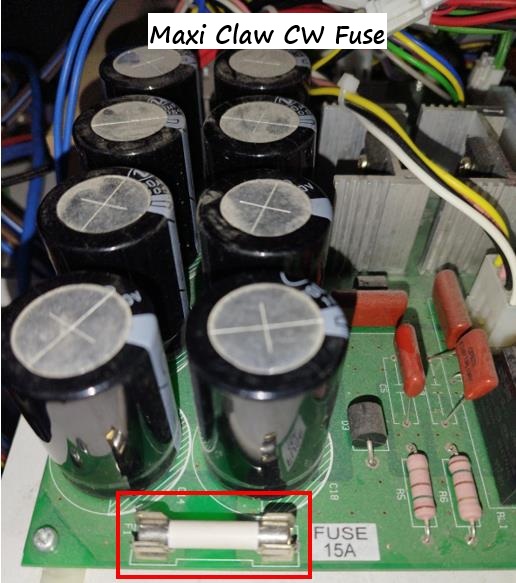

CW (Claw) Fuse – Burnt/broken fuse will cause the claw to not close

UD (Up Down) Fuse – Burnt/broken fuse can cause (Error 01, 03, and 04 – Up-down motion of the claw issue.)

How to identify a damaged fuse.

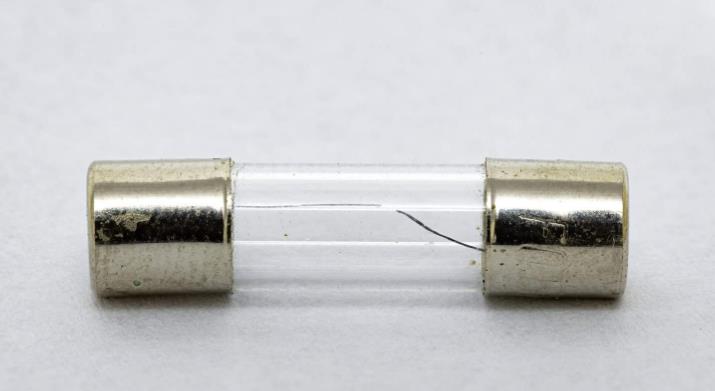

Look through the fuse: If the metal wire inside is broken or you see black/burn marks, it’s blown.

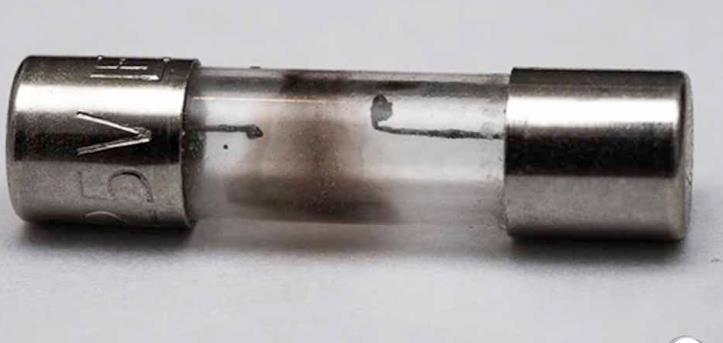

Cloudy or darkened glass also indicates a blown fuse.

To remove the fuse safely please have the machine turned off. There is usually a reason a fuse has blown, please check the coil wire and the loom for damage.
